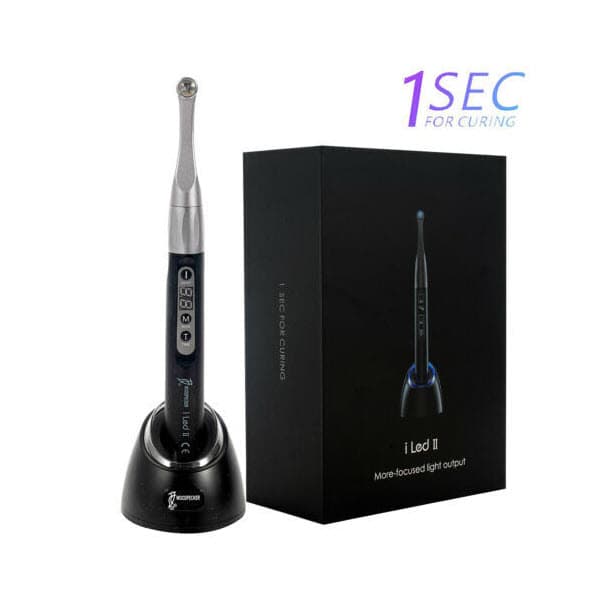

LED II is an advanced dental curing light with upgraded features designed to enhance the efficiency and effectiveness of dental restorative procedures.Key Specifications and Features
Light Output and Curing Capabilities
- Upgraded Light Output: Focused for precision in curing processes.
- Magnetic Point Cure Lens: Ensures direct and targeted application.
- Modes: Three selectable modes to suit various curing needs.
- Intensity: Offers a high-intensity light of up to 3000 mW/cm².
- Curing Time: Capable of curing within 1 second, indicating a very fast polymerization of restorative materials.
- Spectrum: Upgraded wide spectrum, likely accommodating a range of photoinitiators.
Technical Specifications
- Dimensions: 25mm x 25mm x 240mm
- Weight: 278g, which is relatively lightweight for hand-held equipment.
- Usage Cycle: 20 seconds on/20 seconds off, allowing for cooling periods to prevent overheating.
Operating Modes
- Turbo Power: For quick curing with settings of 1 and 3 seconds.
- High Power: Extended curing with settings of 35 and 55 seconds.
- Standard Power: Varied settings (55, 105, 155, 205 seconds) for different curing requirements.
Adapter and Battery
- Battery Model: 18500, a specific size of lithium-ion battery.
- Capacity: 2000mAh, providing substantial power for extended use.
- Safety: Includes protection against over-voltage, over-current, and short-circuiting.
- Charger Specs: Input of 100-240V~50/60Hz 0.4A Max. with an American plug style and an output of 5.0V 1A.
Light Source
- LED Type: 10W high-power blue light LED.
- Wavelength Range: 385nm to 515nm, which is optimal for curing most dental materials.
- Intensity Range: 1000-3000mW/cm², adjustable according to the power mode selected.
