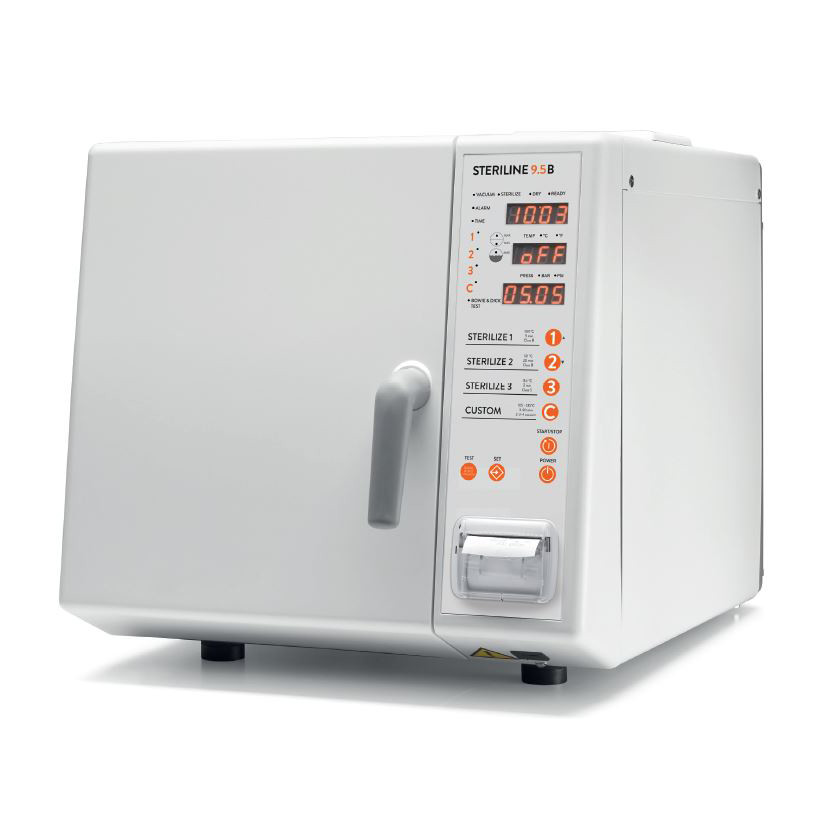

Steriline 9.5B Class B Autoclaves are a premium choice for dental practices requiring hospital-grade sterilization capabilities. Their sleek design belies the sophisticated technology within, ensuring delicate dental instruments are sterilized safely and effectively.
Design and Capacity:
- Compact Elegance: The autoclave boasts an elegant form factor with a chamber size of 17.5 liters.
- Chamber Features: A nickel-plated copper chamber ensures precise temperature control and efficient drying.
- Dimensions: It measures 447 x 438 x 625 mm (L x H x P), with a usable space of 180 x 282 x 160 mm (LxPxH).
Performance:
- Powerful Vacuum Pump: Ensures complete air expulsion, allowing for the sterilization of complex instruments including the inner surfaces of handpieces.
- Gentle on Instruments: Designed to eliminate thermal shock, protecting even the most sensitive dental tools during sterilization.
Reliability and Safety:
- Intelligent Control: The computerized control system automates sterilization cycles, minimizing the potential for human error.
- Traceability: Each cycle's data can be recorded on a memory card for PC analysis, and an optional internal printer is available for immediate record keeping.
Technical Specifications:
Feature
Specification
Overall Dimensions
447 x 438 x 625 mm
Chamber Dimensions
Ø 240 x 384 mm (Depth)
Weight
45 Kg
Power Supply Voltage
230 V, 50/60 Hz
Power Consumption
900 W – 1920 W
Operating Temperature
+10 - +40° C
Altitude
0 - 2000 meters above sea level
Operating Range
Indoor, up to 85% relative humidity
Water Consumption Volume
0.6 liters
Tank Capacity
4 liters (clean and used water each)
Auto Switch-Off
After 30 minutes of standby at end of cycle
Sterilization Cycles:
Cycle
Temperature
Sterilization Time
Drying Phase
Vacuum Level
Cycle Type
Max Load
B134
134° C
5 minutes
10 minutes
Level 3
B
4 kg solid, 1.5 kg porous
B121
121° C
20 minutes
11 minutes
Level 3
B
4 kg solid, 1.5 kg porous
S134
134° C
3 minutes
5 minutes
Level 2
S
4 kg solid
Custom
105-135° C
3-20 minutes
5-14 minutes
Levels 2-4
-
4 kg solid, 1.5 kg porous
Helix Test
134° C
3’30”
10 minutes
Level 3
TEST
-
B&D Test
134° C
3’30”
10 minutes
Level 3
TEST
-
Vacuum Test
<35° C
-
-
Level 3
-
-
Installation and Environment:
- User-Friendly: Designed for straightforward installation with minimal space requirements.
- Versatile Use: Suitable for varying clinic altitudes and indoor humidity conditions.
